Conductive Fabrics: A Revolution in the World of Smart Textile Industry

Conductive Fabrics

Electrically Conductive Fabrics

Conductive fabrics are a type of innovative fabrics that have the ability to conduct energy. These fabrics are made up of conductive materials such as silver, copper, or carbon, which allow them to transmit signals and power to electronic devices.

There are two types of conductive fabrics, heat conductive and electric conductive fabrics. The smart textile industry uses both types of these fabrics for different purposes. Heat-conducting fabrics are used for applications where the distribution of heat energy is important. However, this article is focused on electrically conductive fabrics and their usage in the E-textiles and smart textiles industry.

Usage of Electrically Conductive Fabrics

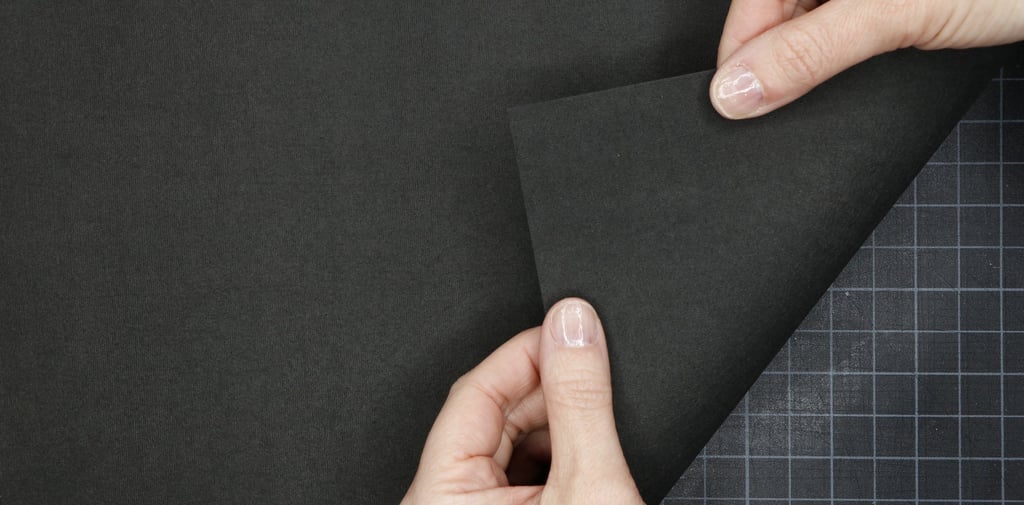

Conductive Heater Fabric, Adafruit

A conductive heater fabric available on Adafruit

Electrically conductive fabrics are capable of transferring signals and power to electronic devices, making them highly useful for a broad range of applications such as wearable technology and medical devices. They play the same role in Smart Textiles as wires do in pure electronic devices.

One prime example of their usefulness is in the creation of smart clothing that can keep track of the wearer’s health. Conductive fabrics can also be employed to design interactive surfaces that respond to touch, providing users with an innovative way to control electronic devices. The medical field also stands to benefit from conductive fabrics, with the ability to use these materials in medical devices to measure critical information such as heart rate and brain activity.

In addition to that these fabrics are also used in creating heated apparel that can be used to aid body temperature regulation.

How to create Conductive fabrics

Creating electrically conductive fabrics requires expertise and innovation in various techniques, including knitting, weaving, and nonwoven methods.

In weaving, conductive threads are interlaced with non-conductive threads to create a fabric that can conduct electricity.

On the other hand, nonwoven conductive fabrics are produced by fusing conductive fibers together, which results in a strong and durable conductive material. These techniques allow for the creation of electrically conductive fabrics with varying properties and applications.

Among the many conductive fabric types, silver conductive fabrics stand out as the most widely used due to their superior conductivity. Silver is known for its excellent electrical conductivity, making it an ideal material for conducting signals and power to electronic devices. The use of silver conductive fabrics has become prevalent in many industries, including healthcare, sports, and consumer electronics. These fabrics offer various benefits such as flexibility, durability, and high conductivity, making them suitable for various applications such as smart textiles, sensors, and antennas.

Who are the biggest players in the industry

Electrically conductive fabrics are a rapidly growing industry that is gaining popularity worldwide. There are numerous countries that are involved in the production of conductive textiles materials, but the leading ones are

  • United States
  • Japan
  • China

The manufacturing of conductive fabrics involves a complex process that requires specialized equipment and skilled labor. As a result, these countries have invested heavily in research and development to enhance the quality and efficiency of their production processes.

Main Applications of Electrically Conductive Fabrics

The use of conductive fabrics is not limited to a specific industry; they are employed across various fields. They are commonly used in the aerospace and automotive industries to create lightweight, comfortable, and premium-looking components that can transmit signals and power.

Additionally, the medical industry uses conductive fabrics to produce wearable sensors and smart clothing that can monitor vital signs and provide real-time feedback to healthcare providers.

The sports industry also utilizes conductive fabrics to create garments that can track athletic performance and prevent injuries.

The versatility and adaptability of conductive fabrics make them an attractive option for a wide range of applications.

Challenges of Using Conductive Fabrics in Smart Textile Applications

While electrically conductive fabrics have numerous applications, their usage also comes with some challenges.

One of the main challenges is the change in resistance when the fabric is stretched multiple times. This inconsistency in resistance values can lead to inaccurate readings and affect the overall performance of the device. Even though this change in resistance can be used as a sensor, it becomes a problem if the fabric doesn’t return to its original state after stretching.

YouTube player

How to test the conductivity of a Conductive Fabric

Another challenge is that conductive fabrics can be adversely affected by contact with liquids like water or sweat. When the fabric comes in contact with moisture, it can malfunction, leading to inaccurate readings or system malfunctions.

Furthermore, after washing several times, the durability and resistance values of the fabric can change, affecting the effectiveness of the conductive properties.

Conductive fabrics typically have greater resistance than their harder counterparts, wires. Hence, conductive fabrics cannot be used in most applications where higher electrical energy transmission to a component of smart textiles is required. But due to their higher resistance values conductive fabrics are widely used in the production of heated apparel. Where they can be used to generate passive heat while retaining textile properties like breathability, stretchability, and drapability.

As a result, it is crucial to consider the environmental and usage factors before designing and using electrically conductive fabrics.


Despite these challenges, the future of these smart fabrics looks bright. Researchers are constantly exploring new materials and manufacturing techniques to improve the durability and performance of these fabrics. The use of conductive fabrics in various industries is expected to increase in the coming years, and we can expect to see more innovative applications of these fabrics in the future.

In conclusion, conductive fabrics are a revolutionary type of fabric that has the ability to conduct energy. These fabrics are made up of conductive materials such as silver, copper, or carbon, which allow them to transmit signals and power to electronic devices. Although there are some challenges associated with the use of these fabrics, the future of electrically conductive fabrics looks promising.
